Wholesale Price 20m 30m High Light Pole Foundation High Mast Light Square light
Description:

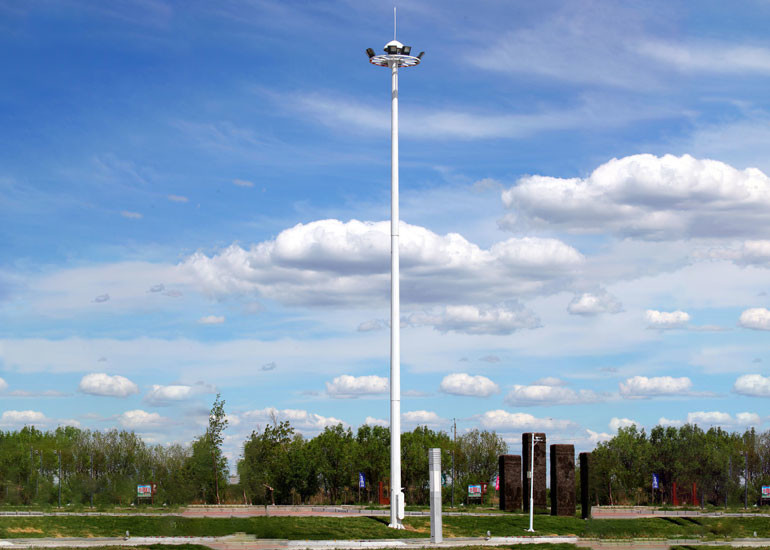

High pole lamp is generally a new type of lighting device composed of a steel cone light pole and high-power combined lamp holder of more than 15 meters. It consists of lamp base, internal lamp electrical, pole body and basic parts. The shape of the lamp head can be determined according to the requirements of the user, the surrounding environment and the lighting needs. The internal lamps are mostly composed of flood lights and flood lights. The rod body is generally a pyramid-shaped single-body structure, which is rolled from steel plate and has a height of 15-40 meters, mostly consisting of two to three sections.
The light poles are octagonal, twelve and eighteen pyramids. They are made of high-strength and high-quality steel plates through cutting, bending, and automatic welding. The general height is 20, 2, 5, 30, 35, 40, and other specifications. The design has a maximum wind resistance of 60 m / s, and each specification consists of 3 to 4 connectors. With flange steel chassis, diameter 1 to 1.2 meters, thickness 30 mm to 40 mm.
Functionality is mainly frame structure, and there are also decorative materials, such as steel through and steel pipes, and light poles and lamp panels are treated with hot-dip zinc.
Customizable tower pole series products mainly include: electric steel poles, steel pile foundations, piling construction, street light poles, signal light poles, various red street light poles, highway and park lighting poles, and a complete set of series.
High Pole Lihgt High Mast Light Description:
| Height | From 18 m to 50m |
| Suitable for | Airport ,seaport, plaza, stadium, square, highway station, street way ,etc |
| Shape | Round, Multi-pyramidal, Column form, polygonal or conical |
| Material | Q235B/A36,minimum yield strength>=235n/mm2 |
| Torrance of dimension | ± 2% |
| Lighting Source | 400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m² |
| Angle of illumination | 180 or 360 degree. |
| Light plate | Various figure of selection ,material with hot dip galvanization steel frame. |
| Lifting system | Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute equipped electromagnetism brake and break –proof device, manual operation applied under power cut. |
| Electric appliance control device | Electric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode. |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode . |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 60 m/s |
| Welding | We has past flaw testing. Internal and external double welding makes the welding in shape |
| Thickness | 6 mm to 20 mm |

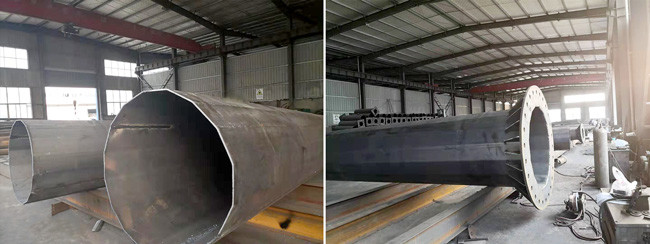

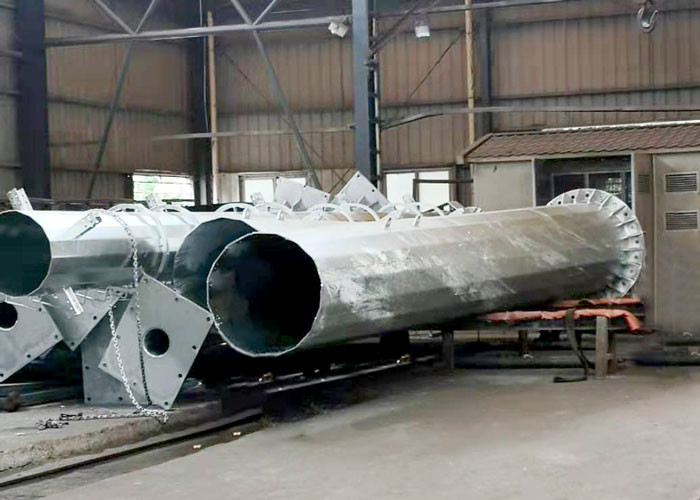

| Production Process | Raw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flange welding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→Packaging |
| Packages | Our poles as normal cover by bubble pack/blanket or straw bale at the top and bottom ,anyway also can following by client required |
Application:
Scope of use of high pole lights: city square, station, dock, freight yard, highway, stadium, overpass.
