18V 175W Monocrystalline Solar Module / Mono Cell Solar Panel Easy Installation

Name: 18V 175W Monocrystalline Solar Module Mono Cell Solar Panel Easy Installation
Brand: URILIC
Price: 1 USD

Buy cheap 18V 175W Monocrystalline Solar Module / Mono Cell Solar Panel Easy Installation product

Brand Name : URILIC

Model Number : 175W

Certification : UL,CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000PCS/week

Delivery Time : 5-15 days

Packaging Details : Plywood box

Product name : monocrystalline solar module

Power : 175W

Size : 1482*666*35mm

Weight : 12.5kg

Max. Overcurrent : 15A

Material : Monocrystalline Silicon

Solar cell : Mono 156*156 Cell

Number of cells : 36pcs

Contact Now

175W-18V Monocrystalline Silicon Solar Cells 175w mono solar panel

Description:
The monocrystalline silicon solar panel is a module body in which a single crystal silicon cell is formed in a different string and array. The main advantages of single crystal plates are conversion efficiency and smooth aesthetics. Monocrystalline Solar Panels have been the go-to the choice for many years. They are among the oldest, most efficient and most dependable ways to produce electricity from the sun. Each module is made from a single silicon crystal and it is recognized by their colour, which is typically black or iridescent blue.

Features:

High efficiency monocrystalline solar power panel.
Outstanding low-light performance.
High transmission tempered glass ensure high quaility solar panel.
Solar cells solar panel with durable anodized aluminum frame.
Efficient protection from frame deformation and water accumulation.
Rugged design to withstand high wind pressure and snow load, easy installation.

Product Details:

Model	U175M-12
Peak Power (W)	175±3%
Open circuit voltage (V)	22.6
Peak Voltage (V)	18.5
peak current (A)	9.46
Short-circuit current (A)	10.12
Cell efficiency	20.5%
Maximum overcurrent (A)	15A
Maximum system voltage (V)	1000V DC
Rated operating temperature	48±2°C
Working temperature range	-40°C- +85°C
Current temperature coefficient	0.1%/°C
Voltage temperature coefficient	-0.37%/°C
Power Temperature Coefficient	0.45%/°C
Solar Cell	1561560.19mm
Number of cells	36 pcs
Size	148266635mm
Weight	12.5 kgs
Surface Packaging	Low iron tempered glass/3.2mm
Sealant	Ethylene Vinyl Acetate (EVA)
Border	Anodized Aluminum/Silver
Junction Box Waterproof Level	≥IP65
Pre-wind pressure	2400Pa
Back wind pressure	2400Pa
Maximum hail impact	25mm/ 23m/s

18V 175W Monocrystalline Solar Module / Mono Cell Solar Panel Easy Installation

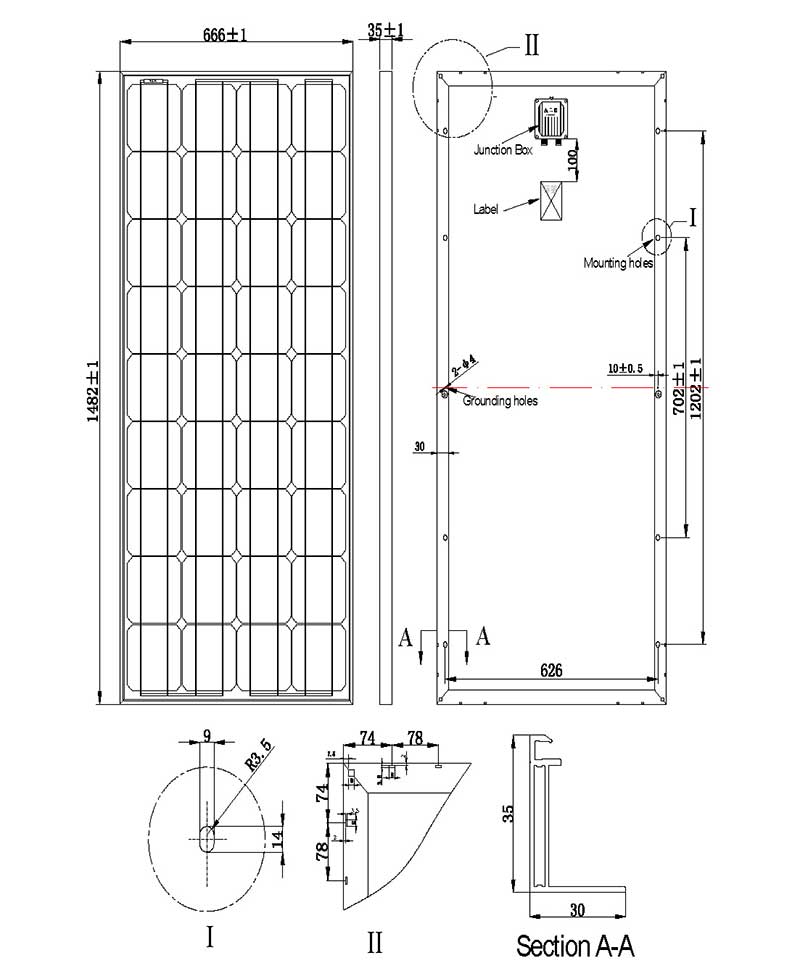

175W-18V solar panel assembly size chart

Our advantage:

High conversion efficiency, high-transmission rate.
Energy saving, environmental-friendly, Safty, No pollution.
Advanced technology, strict quality control system.
Easy installation, safe operation, free maintenance.
10-year product warranty,12-year warranty at 90% power output,25-year warranty at 80% power output.
Quality in priority, clients the upmost.

Solar Panel Details Show:


Solar Cell High Efficiency PV Cells Appearance Consistency Color sorting ensure consistent appearance on each module Anti-PID	Frame Frame thinkness>18mm Oxidation Film>15Pm TUV&UL standard sillica gel Ability to resist 5400Pa mechanical pressure Good anti-corruption performance in seaside environment	Solar junction box PPO material, IP67. Quality diode ensures module running safety Heat dissipation Long service life

Solar Panels Production Process:

1. Cell Sorting	2. Cell Welding	3. Laminating
4. EL Test	5. Lamination	6. Cut Edge
7. Glue the Borders	8. Framing	9. Junction Box Fixing
10. Curing	11. Packaging	12. Transport

Solar Panel Application:


Solar Wind Hybrid System Street Light	Solar Camera	Solar Wind Hybrid System Station	Solar Panels Station

Product Tags:

monocrystalline silicon solar cells

mono silicon solar panels
